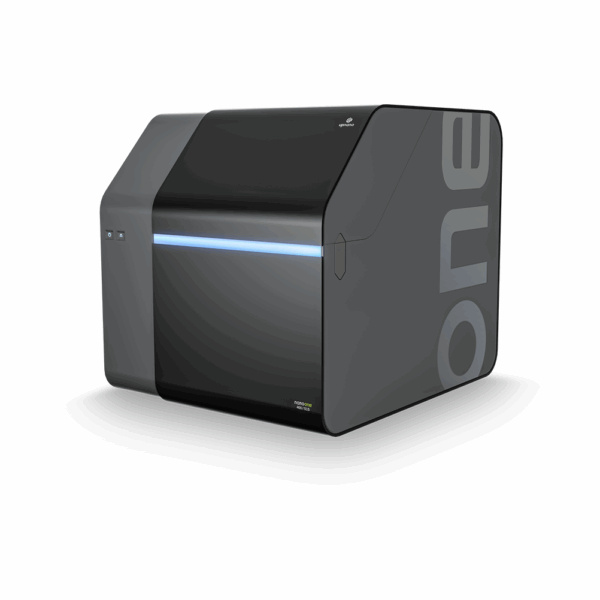

NanoOne green
With a green wavelength of 515 nm and 400 mW output power* of the laser, built to work with a broader range of standard and transparent materials.
*Power in the sample depends on the selected objective and is lower than the output power of the laser.
Description
With a green wavelength of 515 nm and a laser power of 400 mW, the NanoOne green is the newest powerful engine added to the NanoOne family. With over 30% higher precision compared to a 780 nm laser wavelength and ability to work with a broader range of standard and transparent materials, the NanoOne green supports a variety of new, exciting research and industrial applications.
- Average output power of the femtosecond laser – 400 mW*
- Pulse length of the laser beam – 90 fs
- Included high-performance objectives – 40x NA 1.4 / 20x NA 0.7 / 10x NA 0.4 – Upgrade ability for additional objectives
Customized upgrades for innovative application
NanoOne printing systems come in a ready-to-use standard configuration, but are also customizable with additional modules to suit specific customer requirements. Below is a glance at the available upgrade options with which you can ensure that your NanoOne green will meet your needs. These upgrades can be easily retrofitted at any time, ensuring your printing system evolves with your changing demands.
Specifications of the system |
|
| System type | Desktop multiphoton laser lithography system |
| Printing process | Layer-by-layer 2-photon polymerization |
| Light source | Femtosecond fiber laser |
| Laser wavelength | 515 nm |
| Output power of femtosecond laser | 400 mW |
| Scanner | Galvanometer scanner |
| Stage | Long-range piezo stage |
| Maximum travel range | Up to 120 x 100 x 49 mm |
| Stage address grid | 10 nm |
| System dimensions | Benchtop system 58.5 x 71.0 x 65.0 cm³ |
| Total weight | 124 kg |
*Power in the sample depends on the selected objective and is lower than the output power of the laser.
